repo.DicePy.dice_visualise Namespace Reference

Functions
def	QHOProbPlot (chain_file)
	Wrapper function for QHO_prob_plot() More...
def	QHO_prob_plot (positions, energies)
	Fancy Plotly plotter for QHO Markov chains. More...
def	HydProbPlot (chain_file, opacity=0.2)
	Wrapper function for H2_prob_plot() More...
def	H2_prob_plot (positions, energies, R1, R2, opacity)
	Plots the sampled wavefunction for H2plus/H2. More...
def	QHOEnergyPlot (results_file, sliceby=(None, None))
	Energy against \( \alpha \) plotter for the QHO problem. More...
def	QHOWfnPlot (chain_file, show_analytic=False)
	Scatter plotter of the sampled QHO wavefunction. More...
def	H2plusEnergyPlot (results_file, sliceby=(None, None))
	\( H_{2}^{+} \) H-H bond energy and parameter plotter. More...
def	H2EnergyPlot (results_file, sliceby=(None, None))
	\( H_{2} \) H-H bond energy and parameter plotter. More...
def	view_original_trace (equil_file)
	Plots the original trace(s) of an MCMC run. More...
def	BurnThinUI (equil_file)
	Wrapper function for interacting with get_autocorrelation_time() More...
def	get_autocorrelation_time (filename, burn, tuning, plotting=True)
	Function which suggests a thinning parameter for a MCMC chain. More...
def	load_results (filename='results.nc')
	Loads the results as a dataset NetCDF object to be passed to other functions. More...
def	load_global_attr (rootgrp, verbose=True)
	Loads the global metadata in the results file into a dictionary. More...
def	load_variables (rootgrp, verbose=True)
	Loads the variables in the results file into a dictionary. More...
def	H2_eng_plot (variables)
	Plots the energies against the parameters checked during the grid search Parameters: variables: Dictionary which contains data about the variables in the netcdf4 object. More...
def	QHO_eng_plot (rootgrp, equil=False)
	energy_plot() Plots the energy at each step as the MC converges More...
def	plot_3D (X, Y, Z, wfn)
def	process_main_results (filename='results.nc', verbose=True)
	Processes the results output as a result of the parameter search from the NetCDF4 file. More...
def	plot_markov_chain (filename)
def	orb_1s (X, Y, Z, R_a)
	functions plotting the wavefunction ab initio ####### More...
def	orb_2s (r, R_a)
def	polar_to_cart (r, theta, phi)
def	lcao_wfn (X, Y, Z, R1, R2, pqn=1)
def	plot_3D (X, Y, Z, wfn, R1, R2)
	Function for plotting the wavefunction analytically. More...
def	example_H1s_wfn (bond_length=2.0)

Function Documentation

QHOProbPlot()

def repo.DicePy.dice_visualise.QHOProbPlot

(

chain_file

)

Wrapper function for QHO_prob_plot()

Loads in the netCDF dataset and extracts position and energy arrays, passes them off to QHO_prob_plot().

Parameters

[in]

chain_file

The main netCDF output file from a Full VQMC run with write_chains=.TRUE.

Definition at line 27 of file dice_visualise.py.

def QHOProbPlot(chain_file):
    '''
    @brief
    Wrapper function for QHO_prob_plot()

    @details
    Loads in the netCDF dataset and extracts position and energy
    arrays, passes them off to QHO_prob_plot().

    @param[in]  chain_file   The main netCDF output file from a Full VQMC run with write_chains=.TRUE.
    '''
    dat = Dataset(chain_file, 'r', format='NETCDF4')

    positions = dat.variables['positions'][:]
    energies = dat.variables['energies'][:]

    fig = QHO_prob_plot(positions, energies)

    fig.show()



Here is the call graph for this function:

QHO_prob_plot()

def repo.DicePy.dice_visualise.QHO_prob_plot	(		positions,
			energies
	)

Fancy Plotly plotter for QHO Markov chains.

Parameters

[in]	positions	Position array from Markov chain
[in]	energies	Energy array from Markov chain

Definition at line 48 of file dice_visualise.py.

def QHO_prob_plot(positions,energies):
    '''
    @brief
    Fancy Plotly plotter for QHO Markov chains

    @param[in]  positions  Position array from Markov chain
    @param[in]  energies   Energy array from Markov chain
    '''
    hist = ff.create_distplot([positions], ['Position Distribution'],
                         bin_size=.2, show_rug=False)

    fig = make_subplots(specs=[[{"secondary_y": True}]])
    fig.add_trace(go.Scatter(x=positions, y=energies, mode ='markers', name="Energy",
                marker=dict(
                color=energies,
                colorscale ='Viridis',
                line=dict(
                    width=0
                    ))))
    fig.add_trace(go.Histogram(hist['data'][0]),secondary_y=True,)
    fig.add_trace(go.Scatter(hist['data'][1]),secondary_y=True,)
    fig['layout']['yaxis']['autorange'] = "reversed"
    fig['layout']['yaxis2']['showgrid'] = False

    return fig

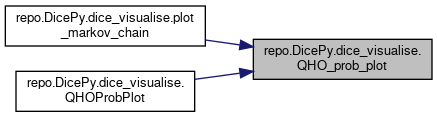

Here is the caller graph for this function:

HydProbPlot()

def repo.DicePy.dice_visualise.HydProbPlot	(		chain_file,
			opacity = 0.2
	)

Wrapper function for H2_prob_plot()

Loads in the netCDF dataset and extracts position and energy arrays, passes them off to H2_prob_plot().

Parameters

[in]	chain_file	The main netCDF output file from a Full VQMC run with write_chains=.TRUE.
[in]	opacity	(Optional, default=0.2) Opacity of the electron position scatter plot

Definition at line 75 of file dice_visualise.py.

def HydProbPlot(chain_file, opacity=0.2):
    '''
    @brief
    Wrapper function for H2_prob_plot()

    @details
    Loads in the netCDF dataset and extracts position and energy
    arrays, passes them off to H2_prob_plot().

    @param[in]  chain_file   The main netCDF output file from a Full VQMC run with write_chains=.TRUE.
    @param[in]  opacity      (Optional, default=0.2) Opacity of the electron position scatter plot
    '''
    dat = Dataset(chain_file, 'r', format='NETCDF4')

    positions = dat.variables['positions'][:, :]
    energies = dat.variables['energies'][:]
    bond_length = dat.bond_length

    R1 = [-bond_length/2, 0.0, 0.0]
    R2 = [bond_length/2, 0.0, 0.0]

    print(len(positions))

    fig = H2_prob_plot(positions, energies, R1, R2, opacity)

    fig.show()


Here is the call graph for this function:

H2_prob_plot()

def repo.DicePy.dice_visualise.H2_prob_plot	(		positions,
			energies,
			R1,
			R2,
			opacity
	)

Plots the sampled wavefunction for H2plus/H2.

Parameters

[in]	positions	XYZ coordinates of Markov chain
[in]	energies	Energies of the Markov chains
[in]	R1	The XYZ coordinates of the first atom
[in]	R2	The XYZ coordinates of the second atom
[in]	opacity	Opacity of the electron position scatter plot

Return values

fig	Plotly figure object

Definition at line 102 of file dice_visualise.py.

def H2_prob_plot(positions,energies,R1, R2, opacity):
    """
    @brief
    Plots the sampled wavefunction for H2plus/H2

    @param[in]  positions  XYZ coordinates of Markov chain
    @param[in]  energies   Energies of the Markov chains
    @param[in]  R1         The XYZ coordinates of the first atom
    @param[in]  R2         The XYZ coordinates of the second atom
    @param[in]  opacity    Opacity of the electron position scatter plot
    @retval     fig        Plotly figure object
    """

    X = positions[:,0]
    Y = positions[:,1]
    Z = positions[:,2]

    fig = go.Figure()

    #Plots the positions of the Markov chain, with energies corresponding to a certain color
    fig.add_trace(
    go.Scatter3d(
        mode='markers',
        x=X,
        y=Y,
        z=Z,
        opacity=opacity,
        marker=dict(
            color=energies,
            size=3,
            colorscale ='Viridis',
            line=dict(
                width=0
                )
            ),
            name='Markov Chain positions'
        )
    )

    #Adds points to show the location of the atoms within the object
    fig.add_trace(
        go.Scatter3d(
        mode='markers',
        x=[R1[0],R2[0]],
        y=[R1[1],R2[1]],
        z=[R1[2],R2[2]],
        opacity=1.0,
        marker=dict(
            color='#AAAAAA',
            size=20,
            line=dict(
                color='Black',
                width=2
                )
            ),
            name='Atoms'
        )
    )

    #Resizes the layout
    fig.update_layout(
    autosize=False,
    width=800,
    height=800,
        margin=dict(
        l=5,
        r=5,
        b=5,
        t=100,
        pad=1
    )
    )

    return fig



Here is the caller graph for this function:

QHOEnergyPlot()

def repo.DicePy.dice_visualise.QHOEnergyPlot	(		results_file,
			sliceby = (None, None)
	)

Energy against \( \alpha \) plotter for the QHO problem.

Plots the VQMC wavefunction energy at each of an array of values for the variational parameter \( \alpha \), alongside error bars of the standard deviation in each energy.

Parameters

[in]	results_file	The main netCDF output file from a QHO run
[in]	sliceby	(Optional) Tuple containing slice intervals for arrays

Definition at line 178 of file dice_visualise.py.

def QHOEnergyPlot(results_file, sliceby=(None, None)):
    '''
    @brief
    Energy against @f$ \alpha @f$ plotter for the QHO problem.

    @details
    Plots the VQMC wavefunction energy at each of an array of values for the
    variational parameter @f$ \alpha @f$, alongside error bars of the standard
    deviation in each energy.

    @param[in]  results_file    The main netCDF output file from a QHO run
    @param[in]  sliceby         (Optional) Tuple containing slice intervals for arrays
    '''
    dat = nd.Dataset(results_file, 'r', format='NETCDF4')

    alpha_array = dat.variables['Alpha_array'][sliceby[0]:sliceby[1]]
    energies = dat.variables['total_energies'][sliceby[0]:sliceby[1]]
    variances = dat.variables['Uncertainties'][sliceby[0]:sliceby[1]]

    stdevs = np.sqrt(variances)
    min_energy = min(energies)
    min_energy_stdev = stdevs[np.argmin(energies)]
    opt_alpha = alpha_array[np.argmin(energies)]

    fig, ax1 = plt.subplots(1, 1, figsize=(8, 8))

    ax1.set_title(r'Quantum Harmonic Oscillator Energy with Varying $\alpha$')
    ax1.plot(alpha_array, energies, marker='o', ls='--', color='blue')
    ax1.fill_between(alpha_array, energies+stdevs, energies-stdevs, alpha=0.3, color='purple')
    ax1.axvline(0.5, ls='-', color='black', alpha=0.3)
    ax1.set_xlabel(r'$\alpha$')
    ax1.set_ylabel('Energy')

    fig.show()

    print(f'Optimum alpha: {opt_alpha}')
    print(f'Energy: {min_energy} ± {min_energy_stdev}')



QHOWfnPlot()

def repo.DicePy.dice_visualise.QHOWfnPlot	(		chain_file,
			show_analytic = False
	)

Scatter plotter of the sampled QHO wavefunction.

Plots the sampled positions of a trial QHO wavefunction against the energies at those positions, to illustrate the shape of that wavefunction. Chain output requires the write_chains parameter to be TRUE.

Parameters

[in]	chain_file	A netCDF dataset of Markov chain and corresponding energies of a VQMC run
[in]	show_analytic	Also display the analytical wavefunction

Definition at line 217 of file dice_visualise.py.

def QHOWfnPlot(chain_file, show_analytic=False):
    '''
    @brief
    Scatter plotter of the sampled QHO wavefunction.

    @details
    Plots the sampled positions of a trial QHO wavefunction against the
    energies at those positions, to illustrate the shape of that wavefunction.
    Chain output requires the @em write_chains parameter to be @em TRUE.

    @param[in]  chain_file     A netCDF dataset of Markov chain and corresponding energies of a VQMC run
    @param[in]  show_analytic  Also display the analytical wavefunction
    '''
    dat = nd.Dataset(chain_file, 'r', format='NETCDF4')

    positions = dat.variables['positions'][:]
    energies = dat.variables['energies'][:]
    alpha = dat.alpha

    plt.figure(figsize=(8, 8))
    plt.title(rf'Sampled QHO Wavefunction at $\alpha$ = {alpha}')
    plt.plot(positions, energies, 'o', color='purple', markersize=4.0, alpha=0.5, label='Sampled Positions')
    plt.xlabel('Sampled Position')
    plt.ylabel('Energy')

    if show_analytic:
        pos_array = np.linspace(min(positions), max(positions), 100)
        analytic = np.exp(-alpha * pos_array**2)
        plt.plot(pos_array, analytic, color='red', alpha=0.8, label='Analytic Probability Distribution')
        plt.legend()

    plt.show()



H2plusEnergyPlot()

def repo.DicePy.dice_visualise.H2plusEnergyPlot	(		results_file,
			sliceby = (None, None)
	)

\( H_{2}^{+} \) H-H bond energy and parameter plotter.

Plots the H-H bond potential energy curve generated by VQMC at the optimum parameters for each bond length. Plots standard deviation of each energy as a measure of uncertainty. Also plots variational parameter \( c \) against bond length. Reports equilibrium bond length for the molecule and optimum energy.

Parameters

[in]	results_file	The main netCDF output file from a \( H_{2}^{+} \) run
[in]	sliceby	(Optional) Tuple containing slice intervals for arrays

Definition at line 251 of file dice_visualise.py.

def H2plusEnergyPlot(results_file, sliceby=(None, None)):
    '''
    @brief
    @f$ H_{2}^{+} @f$ H-H bond energy and parameter plotter.

    @details
    Plots the H-H bond potential energy curve generated by VQMC at the optimum
    parameters for each bond length. Plots standard deviation of each energy as
    a measure of uncertainty. Also plots variational parameter @f$ c @f$ against
    bond length. Reports equilibrium bond length for the molecule and optimum
    energy.

    @param[in]  results_file    The main netCDF output file from a @f$ H_{2}^{+} @f$ run
    @param[in]  sliceby         (Optional) Tuple containing slice intervals for arrays
    '''
    dat = nd.Dataset(results_file, 'r', format='NETCDF4')

    bond_lengths = dat.variables['Bondlength_array'][sliceby[0]:sliceby[1]]
    c_opt = dat.variables['Parameter_array'][sliceby[0]:sliceby[1]]
    energies = dat.variables['total_energies'][sliceby[0]:sliceby[1]]
    variances = dat.variables['Uncertainties'][sliceby[0]:sliceby[1]]

    stdevs = np.sqrt(variances)
    min_energy = min(energies)
    min_energy_stdev = stdevs[np.argmin(energies)]
    min_bond_length = bond_lengths[np.argmin(energies)]

    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(18, 8))

    ax1.set_title(r'$H_{2}^{+}$ bond energy curve')
    # ax1.plot(bond_lengths, energies, marker='o')
    ax1.plot(bond_lengths, energies, marker='o', ls='--', color='blue')
    ax1.fill_between(bond_lengths, energies+stdevs, energies-stdevs, alpha=0.3, color='purple')
    ax1.axhline(-0.5, ls='-', color='black', alpha=0.3)
    ax1.set_xlabel(r'Bond Length / $a_{0}$')
    ax1.set_ylabel('Energy / Ha')

    ax2.set_title(r'Optimised parameter $c$')
    ax2.plot(bond_lengths, c_opt)
    ax2.axhline(1/np.sqrt(2), ls='-', color='black', alpha=0.3)
    ax2.set_xlabel(r'Bond Length / $a_{0}$')
    ax2.set_ylabel(r'$c$')

    fig.tight_layout()
    fig.show()

    print(f'Equilibrium bond length: {min_bond_length} Bohr')
    print(f'                         = {min_bond_length*0.529177} Angstroms')
    print(f'   at energy: {min_energy} ± {min_energy_stdev} Ha')




H2EnergyPlot()

def repo.DicePy.dice_visualise.H2EnergyPlot	(		results_file,
			sliceby = (None, None)
	)

\( H_{2} \) H-H bond energy and parameter plotter.

Plots the H-H bond potential energy curve generated by VQMC at the optimum parameters for each bond length. Plots standard deviation of each energy as a measure of uncertainty. Also plots variational parameters \( a \) and \( \beta \) against bond length. Reports equilibrium bond length for the molecule and optimum energy.

Parameters

[in]	results_file	The main netCDF output file from a \( H_{2} \) run
[in]	sliceby	(Optional) Tuple containing slice intervals for arrays

Definition at line 303 of file dice_visualise.py.

def H2EnergyPlot(results_file, sliceby=(None, None)):
    '''
    @brief
    @f$ H_{2} @f$ H-H bond energy and parameter plotter.

    @details
    Plots the H-H bond potential energy curve generated by VQMC at the optimum
    parameters for each bond length. Plots standard deviation of each energy as
    a measure of uncertainty. Also plots variational parameters @f$ a @f$ and
    @f$ \beta @f$ against bond length. Reports equilibrium bond length for the
    molecule and optimum energy.

    @param[in]  results_file    The main netCDF output file from a @f$ H_{2} @f$ run
    @param[in]  sliceby         (Optional) Tuple containing slice intervals for arrays
    '''
    dat = nd.Dataset(results_file, 'r', format='NETCDF4')

    bond_lengths = dat.variables['Bondlength_array'][sliceby[0]:sliceby[1]]
    a_opt = dat.variables['Parameter_a_array'][sliceby[0]:sliceby[1]]
    beta_opt = dat.variables['Parameter_beta_array'][sliceby[0]:sliceby[1]]
    energies = dat.variables['total_energies'][sliceby[0]:sliceby[1]]
    variances = dat.variables['Uncertainties'][sliceby[0]:sliceby[1]]

    stdevs = np.sqrt(variances)
    min_energy = min(energies)
    min_energy_stdev = stdevs[np.argmin(energies)]
    min_bond_length = bond_lengths[np.argmin(energies)]

    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(18, 8))

    ax1.set_title(r'$H_{2}$ bond energy curve')
    ax1.errorbar(bond_lengths, energies, yerr=stdevs, marker='o', ls='--', color='blue')
    ax1.fill_between(bond_lengths, energies+stdevs, energies-stdevs, alpha=0.3, color='purple')
    ax1.set_xlabel(r'Bond Length / $a_{0}$')
    ax1.set_ylabel('Energy / Ha')

    ax2.set_title(r'Optimised parameters')
    ax2.plot(bond_lengths, a_opt, color='red')
    ax2.set_xlabel(r'Bond Length / $a_{0}$')
    ax2.set_ylabel(r'$a$', color='red')
    ax2.tick_params(axis='y', labelcolor='red')

    ax2a = ax2.twinx()
    ax2a.plot(bond_lengths, beta_opt, color='blue')
    ax2a.set_ylabel(r'$\beta$', color='blue')
    ax2a.tick_params(axis='y', labelcolor='blue')

    fig.tight_layout()
    fig.show()

    print(f'Equilibrium bond length: {min_bond_length} Bohr')
    print(f'                         = {min_bond_length*0.529177} Angstroms')
    print(f'   at energy: {min_energy} ± {min_energy_stdev} Ha')


#------------------------------------
# Burn / Thin FUNCTION DEFINITIONS -
#------------------------------------


view_original_trace()

def repo.DicePy.dice_visualise.view_original_trace

(

equil_file

)

Plots the original trace(s) of an MCMC run.

Parameters

[in]

equil_file

Filename of MCMC equilibration run

Definition at line 366 of file dice_visualise.py.

def view_original_trace(equil_file):
    rootgrp = Dataset(equil_file, "r", format = "NETCDF4")
    chain = np.array(rootgrp['positions'][:])
    if len(chain.shape) == 1:
        plt.plot(range(len(chain)), chain, linewidth=1.0)
        plt.xlabel("Position in chain")
        plt.ylabel("Chain value")
        plt.title("Original Chain")
        plt.show()

    else:
        chainx = chain[:,0]
        chainy = chain[:,1]
        chainz = chain[:,2]

        fig, (ax1,ax2,ax3) = plt.subplots(3,1)
        ax1.plot(range(len(chainx)), chainx, linewidth=1.0)
        ax2.plot(range(len(chainy)), chainy, linewidth=1.0)
        ax3.plot(range(len(chainz)), chainz, linewidth=1.0)

    return


BurnThinUI()

def repo.DicePy.dice_visualise.BurnThinUI

(

equil_file

)

Wrapper function for interacting with get_autocorrelation_time()

Parameters

[in]

equil_file

Filename of MCMC equilibration run

Definition at line 388 of file dice_visualise.py.

def BurnThinUI(equil_file):
    '''
    @brief
    Wrapper function for interacting with get_autocorrelation_time()

    @param[in]  equil_file   Filename of MCMC equilibration run
    '''
    widgets.interact_manual(get_autocorrelation_time, filename=fixed(equil_file),
        burn=(0, int(0.1*len(np.array(Dataset(equil_file, "r", format = "NETCDF4")['positions'][:]))), 10),
        tuning=[(1.0),(1e-1),(1e-2),(1e-3),(1e-4)])


get_autocorrelation_time()

def repo.DicePy.dice_visualise.get_autocorrelation_time	(		filename,
			burn,
			tuning,
			plotting = True
	)

Function which suggests a thinning parameter for a MCMC chain.

Takes as input a burning parameter and a tuning parameter which controls how aggressively you tune out autocorrelation in the trace, and prints a suggested thinning parameter (if one was found). Intention is to use interactively, to illustrate procedure for burning and thinning, as default values are provided. Plots generated are the autocorrelation as a function of lag time, and the burnt and thinned trace / chain.

Parameters

[in]	filename	Filename of MCMC equilibration run
[in]	burn	Number of samples from chain to burn / discard
[in]	tuning	Parameter which controls aggression of thinning
[in]	plotting	Controls whether to display plots

Definition at line 415 of file dice_visualise.py.

def get_autocorrelation_time(filename, burn, tuning, plotting=True):
    rootgrp = Dataset(filename, "r", format = "NETCDF4")
    chain = np.array(rootgrp['positions'][:])
    if len(chain.shape) == 1:
        acp = sps.fftconvolve(chain,chain[::-1],mode='full')
        acp = acp[int(acp.size / 2):]
        acp = acp / max(acp)
        acp = acp[burn:]

        thin = np.argmax(abs(acp) < tuning)
        if thin == 0:
            if acp[thin] < tuning:
                thin = 1
            else:
                print("No thinning value found - tuning may be too aggressive. Defaulting to no thinning, thin=1.")
                print()
                thin = 1

        print("burning parameter = ", burn)
        print("proposed thinning parameter = ", thin)

        chain_new = chain[burn::thin]
        print("length of new chain = ", len(chain_new))

        if plotting==True:
            plt.plot(range(len(acp)), acp, linewidth=1.0)
            plt.xlabel("Position in chain / Lag time")
            plt.ylabel("ACF")
            plt.title("Autocorrelation function vs lag time")
            plt.show()

            plt.plot(range(len(chain_new)), chain_new, linewidth=1.0)
            plt.xlabel("Position in chain")
            plt.ylabel("Chain value")
            plt.title("New Chain")
            plt.show()

        return burn, thin

    else:
        chainx = chain[:,0]
        chainy = chain[:,1]
        chainz = chain[:,2]

        threed_thin = []
        chain_lengths = []

        for c in [chainx,chainy,chainz]:
            acp = sps.fftconvolve(c,c[::-1],mode='full')
            acp = acp[int(acp.size / 2):]
            acp = acp / max(acp)
            acp = acp[burn:]

            thin = np.argmax(abs(acp) < tuning)
            if thin == 0:
                if acp[thin] < tuning:
                    thin = 1
                else:
                    print("No thinning value found - tuning may be too aggressive. Defaulting to no thinning, thin=1.")
                    print()
                    thin = 1

            threed_thin.append(thin)

            chain_new = c[burn::thin]
            chain_lengths.append(len(chain_new))

            if plotting==True:
                plt.plot(range(len(acp)), acp, linewidth=1.0)
                plt.xlabel("Position in chain / Lag time")
                plt.ylabel("ACF")
                plt.title("Autocorrelation function vs lag time")
                plt.show()

#                 plt.plot(range(len(chain_new)), chain_new, linewidth=1.0)
#                 plt.xlabel("Position in chain")
#                 plt.ylabel("Chain value")
#                 plt.title("New Chain")
#                 plt.show()
        print("burning parameter = ", burn)
        print("proposed thinning parameters from the 3 chains: ", threed_thin)
        print("chain lengths from proposed thins", chain_lengths)

        return burn, threed_thin



#------------------------------------
# Deprecated Functions
#------------------------------------


load_results()

def repo.DicePy.dice_visualise.load_results

(

filename = 'results.nc'

)

Loads the results as a dataset NetCDF object to be passed to other functions.

Parameters:
    filename: The name of the file containing the results, defaults to 'results.nc'.

Definition at line 506 of file dice_visualise.py.

def load_results(filename = 'results.nc'):

    """Loads the results as a dataset NetCDF object to be passed to other functions

    Parameters:
        filename: The name of the file containing the results, defaults to 'results.nc'. """

    try:
        rootgrp = Dataset(filename)
    except OSError as err:
        print(f"OS error: {err}")
    return rootgrp



Here is the caller graph for this function:

load_global_attr()

def repo.DicePy.dice_visualise.load_global_attr	(		rootgrp,
			verbose = True
	)

Loads the global metadata in the results file into a dictionary.

Parameters:
    rootgrp: NetCDF4 dataset object which loaded in using 'load_results()'.
    verbose: Defaults to true. Prints the value of global attributes which have been loaded

Definition at line 520 of file dice_visualise.py.

def load_global_attr(rootgrp, verbose = True):
    """Loads the global metadata in the results file into a dictionary

    Parameters:
        rootgrp: NetCDF4 dataset object which loaded in using 'load_results()'.
        verbose: Defaults to true. Prints the value of global attributes which have been loaded
    """
    global_dict ={}

    for name in rootgrp.ncattrs():
        if verbose:
            print("{} = {}".format(name, getattr(rootgrp, name)))

    global_dict[name] = getattr(rootgrp, name)


    return global_dict



Here is the caller graph for this function:

load_variables()

def repo.DicePy.dice_visualise.load_variables	(		rootgrp,
			verbose = True
	)

Loads the variables in the results file into a dictionary.

Parameters:
    rootgrp: NetCDF4 dataset object which loaded in using 'load_results()'
    verbose: Defaults to true. Prints the value of variables which have been loaded

Definition at line 539 of file dice_visualise.py.

def load_variables(rootgrp, verbose = True):
    """Loads the variables in the results file into a dictionary

    Parameters:
        rootgrp: NetCDF4 dataset object which loaded in using 'load_results()'
        verbose: Defaults to true. Prints the value of variables which have been loaded
    """
    var_dict = {}
    for k in rootgrp.variables.keys():
        if verbose:
            print("{} = {}".format(k, rootgrp[k][:]))
        var_dict[k] = rootgrp[k][:]

    return var_dict



Here is the caller graph for this function:

H2_eng_plot()

def repo.DicePy.dice_visualise.H2_eng_plot

(

variables

)

Plots the energies against the parameters checked during the grid search Parameters: variables: Dictionary which contains data about the variables in the netcdf4 object.

Definition at line 555 of file dice_visualise.py.

def H2_eng_plot(variables):
    """Plots the energies against the parameters checked during the grid search
       Parameters:
         variables: Dictionary which contains data about the variables in the netcdf4 object"""

    fig = go.Figure()

    fig.add_trace(
        go.Scatter(
            x=variables['Bondlength_array'],
            y=variables['total_energies'],
            error_y=dict(
            type='data',
            array=variables['Uncertainties'],
            visible=True)
            )
        )

    fig.update_layout(
    title=f"Energies vs Bond Lengths",
    xaxis_title="Bond Length",
    yaxis_title="Energy"
    )

    fig.show()

    return fig



Here is the caller graph for this function:

QHO_eng_plot()

def repo.DicePy.dice_visualise.QHO_eng_plot	(		rootgrp,
			equil = False
	)

energy_plot() Plots the energy at each step as the MC converges

Definition at line 584 of file dice_visualise.py.

def QHO_eng_plot(rootgrp,equil=False):
    """energy_plot()
    Plots the energy at each step as the MC converges
    """

    energies = np.array(rootgrp.variables['energy_at_alphas_array'][:])

    alphas = np.array((rootgrp.variables['Alpha_array'][:]))

    if (equil):
        pass

    data = go.Scatter(x=alphas, y=energies, mode='markers')
    fig = go.Figure(data)
    fig.show()

    return data



plot_3D() [1/2]

def repo.DicePy.dice_visualise.plot_3D	(		X,
			Y,
			Z,
			wfn
	)

Definition at line 603 of file dice_visualise.py.

def plot_3D(X,Y,Z,wfn):
    #for plotting wavefunctions, to be removed
    fig = go.Figure(data=go.Volume(
        x=X.flatten(),
        y=Y.flatten(),
        z=Z.flatten(),
        value=wfn.flatten(),
        isomin=0.0,
        isomax=1.2,
        opacity=0.1,
        surface_count=21,
    ))

    #fig.save("wavefunction.png")

    return fig

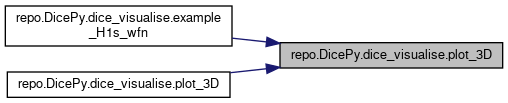

Here is the caller graph for this function:

process_main_results()

def repo.DicePy.dice_visualise.process_main_results	(		filename = 'results.nc',
			verbose = True
	)

Processes the results output as a result of the parameter search from the NetCDF4 file.

Parameters:
    filename: Defaults to 'results.nc'. The file which contains the data output by the parameter search

Definition at line 621 of file dice_visualise.py.

def process_main_results(filename='results.nc', verbose = True):
    """Processes the results output as a result of the parameter search from the NetCDF4 file

    Parameters:
        filename: Defaults to 'results.nc'. The file which contains the data output by the parameter search
    """



    rootgrp = load_results(filename)

    global_attr = load_global_attr(rootgrp, verbose)

    variables = load_variables(rootgrp, verbose)


    if (global_attr['system'] == 'QHO'):
        pass
        #data1 = QHO_eng_plot(rootgrp)
        #fig = QHO_prob_plot(rootgrp)
    elif(global_attr['system'] == 'H2plus'):
        main_fig = H2_eng_plot(variables)


    elif(global_attr['system'] == 'H2'):
        pass

    else:
            raise Exception("Invalid system input into visualisation")

    return global_attr,variables,main_fig

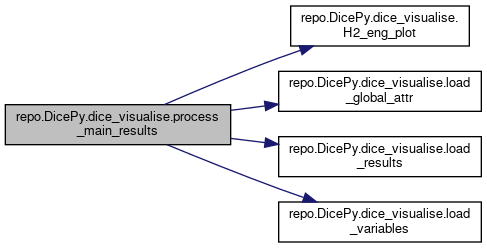

Here is the call graph for this function:

plot_markov_chain()

def repo.DicePy.dice_visualise.plot_markov_chain

(

filename

)

Definition at line 654 of file dice_visualise.py.

def plot_markov_chain(filename):

    dset = nc.Dataset(filename)

    energies = dset['energies'][:]

    positions = dset['positions'][:]

    if dset.system == 'QHO':

        fig = QHO_prob_plot(positions)

        return fig

    elif dset.system == 'H2' or dset.system == 'H2plus':

        R1 = [-0.5*dset.bond_length, 0, 0]
        R2 = [0.5*dset.bond_length, 0, 0]

        fig = vis.H2_prob_plot(positions, energies, R1, R2)

        return fig



Here is the call graph for this function:

orb_1s()

def repo.DicePy.dice_visualise.orb_1s	(		X,
			Y,
			Z,
			R_a
	)

functions plotting the wavefunction ab initio #######

Definition at line 680 of file dice_visualise.py.

def orb_1s(X,Y,Z, R_a): #R_a is the location of the atoms
    x_a,y_a,z_a = R_a
    a0 = 1
    orbital = 1/(((a0**1.5)*(np.sqrt(np.pi)))*\
                 np.exp(np.sqrt((X-x_a)**2+(Y-y_a)**2+(Z-z_a)**2)/a0))
    return orbital



Here is the caller graph for this function:

orb_2s()

def repo.DicePy.dice_visualise.orb_2s	(		r,
			R_a
	)

Definition at line 688 of file dice_visualise.py.

def orb_2s(r,R_a):
    a0 = 1
    orbital = (2-np.linalg.norm(r-R_a)()/a0)/((4*(a0**1.5)*(np.sqrt(2*np.pi)))*np.exp(np.linalg.norm(r-R_a)/(2*a0)))
    return orbital



polar_to_cart()

def repo.DicePy.dice_visualise.polar_to_cart	(		r,
			theta,
			phi
	)

Definition at line 694 of file dice_visualise.py.

def polar_to_cart(r,theta, phi):
    X = r*np.sin(phi)*np.cos(theta)
    Y = r*np.sin(phi)*np.sin(theta)
    Z = r*np.cos(phi)

    return X,Y,Z



lcao_wfn()

def repo.DicePy.dice_visualise.lcao_wfn	(		X,
			Y,
			Z,
			R1,
			R2,
			pqn = 1
	)

Definition at line 702 of file dice_visualise.py.

def lcao_wfn(X,Y,Z, R1, R2, pqn = 1):
    #for the linear combination of wavefunctions, to be added to and to be remove
    if pqn == 1:
         wfn = np.sqrt(2)*orb_1s(X,Y,Z,R1) + np.sqrt(2)*orb_1s(X,Y,Z,R2)
    if pqn == 2:
        pass

    return wfn



Here is the call graph for this function:

Here is the caller graph for this function:

plot_3D() [2/2]

def repo.DicePy.dice_visualise.plot_3D	(		X,
			Y,
			Z,
			wfn,
			R1,
			R2
	)

Function for plotting the wavefunction analytically.

Meshgrids can be generated using np.meshgrid(x,y,z)

Parameters: X: Meshgrid of X coordinates Y: Meshgrid of Y coordinates Z: Meshgrid of Z coordinates

Definition at line 712 of file dice_visualise.py.

def plot_3D(X,Y,Z,wfn,R1,R2):
    """ Function for plotting the wavefunction analytically. Meshgrids can be generated using np.meshgrid(x,y,z)

    Parameters:
        X: Meshgrid of X coordinates
        Y: Meshgrid of Y coordinates
        Z: Meshgrid of Z coordinates
    """

    fig = go.Figure()
    #for plotting wavefunctions, to be removed
    fig.add_trace(go.Volume(
    x=X.flatten(),
    y=Y.flatten(),
    z=Z.flatten(),
    value=wfn.flatten(),
    opacity=0.1,
    surface_count=21,
    ))

    fig.add_trace(go.Scatter3d(
        mode='markers',
        x=[R1[0],R2[0]],
        y=[R1[1],R2[1]],
        z=[R1[2],R2[2]],
        opacity=1.0,
        marker=dict(
            color='#AAAAAA',
            size=10,
            line=dict(
                color='Black',
                width=2
                )
            ),
            name='Atoms'
        )
    )
    return fig



Here is the call graph for this function:

example_H1s_wfn()

def repo.DicePy.dice_visualise.example_H1s_wfn

(

bond_length = 2.0

)

Definition at line 752 of file dice_visualise.py.

def example_H1s_wfn(bond_length=2.0):

    x, y, z = np.mgrid[-3:3:40j, -3:3:40j, -3:3:40j]

    R_1 = (-0.5*bond_length, 0,0)
    R_2 = (0.5*bond_length, 0,0)

    wfn = lcao_wfn(x,y,z,R_1,R_2)
    density = wfn**2

    density_plot = plot_3D(x,y,z,density,R_1,R_2)
    return density_plot

    return wfn

Here is the call graph for this function:
